An Integrated Sensor Switch Factory Behind the CSX Brand
- 1.Purely mechanical, zero-power design
- 2.Multi-channel parallel reliability
- 3.RoHS compliant & vacuum sealed
- 4.OEM/ODM & full customization
- 5.Free samples for evaluation
- 6.Rapid global shipping
Sensor Switches for Every Sensing Requirement
Four engineered product families covering vibration, tilt, orientation and motion detection — from ultra-compact SMD parts to industrial-grade sealed switches.
Mechanical vibration sensors and switches that detect micro-vibration, displacement and motion with zero quiescent power.
1.Ultra-high sensitivity vibration sensor (CSX-SEN series)
2.High sensitivity vibration switch (S180 / S300)
3.Medium-high sensitivity vibration switch (S01 / S02 / S06 / S08)
Multi-channel parallel tilt switches for tip-over protection and angle detection on horizontal or vertical PCBs.
1.CSX series omnidirectional tilt switch (15°–90°)
2.Vertical plate VT45 / XT45 (NO / NC)
3.Industrial vertical & horizontal types (IP65–IP68)
One-way, two-way, four-way and six-axis mechanical switches that replace gyroscopes in orientation-sensing products.
1.One-way tilt switch (S07, S07D, CSX2010)

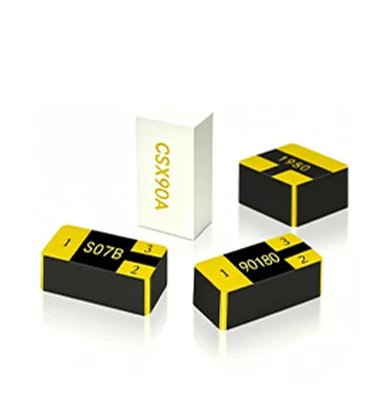

2.Two-way tilt switch (S07B, 90180, CSX90A)

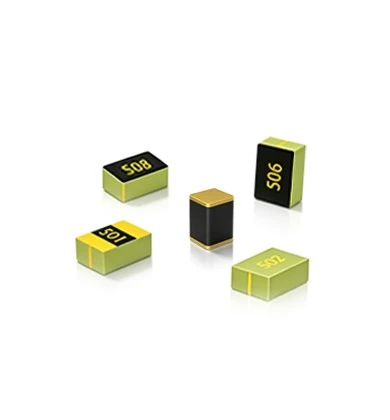

3.Four-way S04 & six-way S86 (gyroscope alternative)
High-reliability switches for applications that need wear-free, non-contact sensing or combined motion and posture detection.

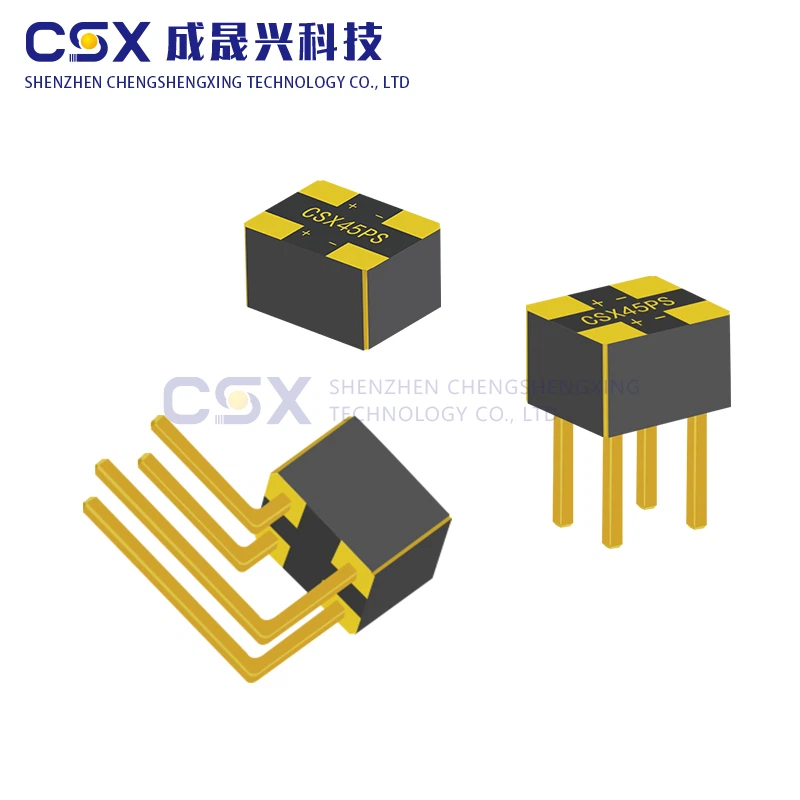

1.Photoelectric tilt switch (CSX15PS–CSX60PS)
2.Motion & posture detection switch (X65 / BT45)
3.Other Tilt Switches
Featured Products:Engineered Specifications for Design-In
-

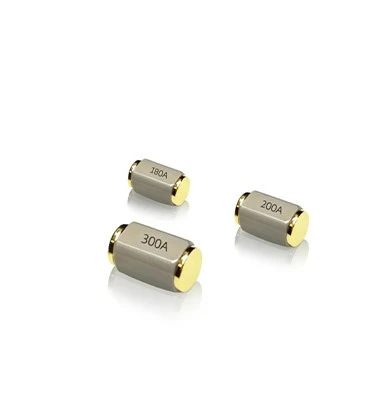

Vibration Sensor (Ultra-High Sensitivity)
-

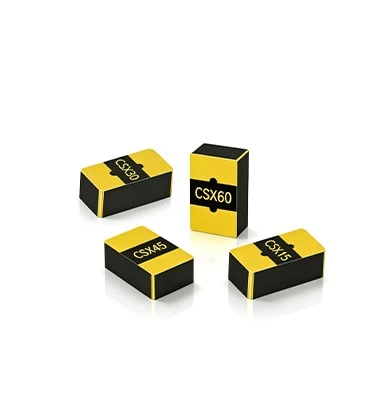

CSX Series Omnidirectional Tilt Switch
-
Micro Vibration Switch (Consumer Grade)
-

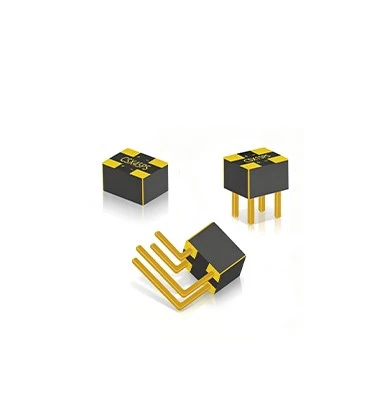

Photoelectric Tilt Switch
-
Multi-directional Tilt Switch
-

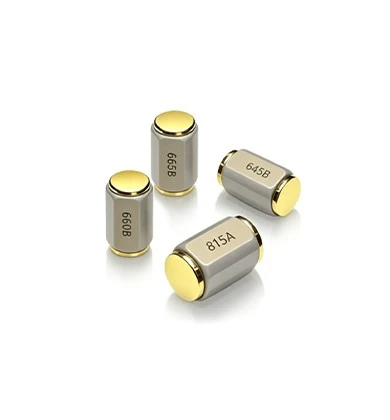

Vertical Omnidirectional Tilt Switch (Industrial Grade)
| Parameter | Value |
| Self power consumption | ≈ 0 |
| Operating voltage | 0.5 – 24 VDC |
| Operating current | 2 µA – 10 mA |
| Contact resistance | < 30 Ω |
| Insulation resistance | > 10 MΩ |
| Operating temperature | −40 °C to +85 °C |
| Package sizes | 2.0×2.0×3.0 mm · 2.5×2.5×4.8 mm · 3.0×3.0×5.2 mm |
| Mounting | SMT |
| Parameter | Value |
| Trigger angle options | 15° / 30° / 45° / 60° / 80° / 90° |
| Package size | 4.9 × 2.5 × 1.85 mm |
| Structure | Multi-channel parallel + multiple beads |
| Operating voltage / current | 0.5–24 VDC · 2 µA – 10 mA |
| Mounting | Supports horizontal mounting (face-in or face-out) and vertical mounting (side-by-side) |
| Applications | Tip-over power-off, anti-tamper & anti-vandalism alarms |
| Parameter | Value |
| Structure | Single Bead/Double Bead |
| Installation Methods | SMT |
| PackageDimensions | 2*2*2.8mm/3*3*4.5mm/2*1.5*0.95mm/3.2*4.8*1.6mm/3.2*4.8*1.6mm/2*1.5*1.25mm |
| Parameter | Value |
| Trigger angle options | 15° / 30° / 45° / 60° |
| Operating voltage | 3.3 / 5 VDC |
| Operating current | 10 mA |
| Service life | 50,000 hours |
| Package size | 4.2 × 3.2 × 3.0 mm |
| Installation Methods | Horizontal Board/Vertical Board SMT / DIP |
Alternatively, in the initial state, the switch is normally open; when tilted in one direction to the switching angle, pins 1 and 2 are connected; when tilted in the other direction to the switching angle, pins 1 and 3 are connected.
| Parameter | Value |
| Package Dimension | 4.9*2.5*1.6mm/4.9*2.5*2.3mm/4.95*5.15*3.1mm |
| Seal Rating | IP68 |
| Material | PCB |
| Mounting | Vertical Plate, Horizontal Plate |
| Power Consumption | ≈0 |
| Parameter | Value |
| Models | 615A / 645B / 660B / 665B / 815A / 830A / 845A / 865A |
| Trigger angle options | 15° / 30° / 45° / 60° / 65° |
| Sealing rating | IP68 |
| Package sizes | 3.0 × 3.0 × 5.2 mm · 5.5×5.5×7.2mm |
The Mechanics Behind a Zero-Power Sensor Switch
Where CSX Sensor Switches Are Designed In
- In-Car GPS Tracker, In-Car Smart Aromatherapy Diffuser
- Streaming Rearview Mirror, TPMS (Tire Pressure Monitoring System)
- Dashcam
- Smart helmets, smartwatches, and smart bracelets
- Smart Massage Gun, Smart Body Fat Scale
- Massage devices, facial cleansing devices, pulse oximeters
- Posture Corrector

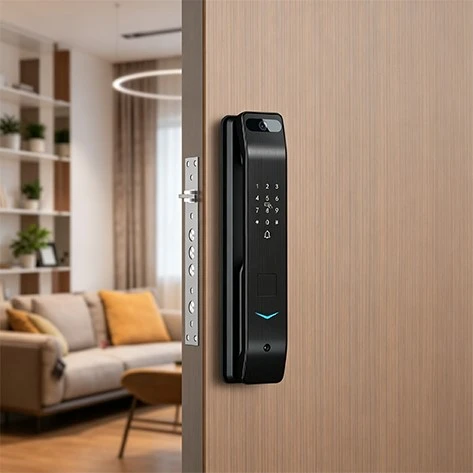

- Smart door locks, smart cameras, smart trash cans

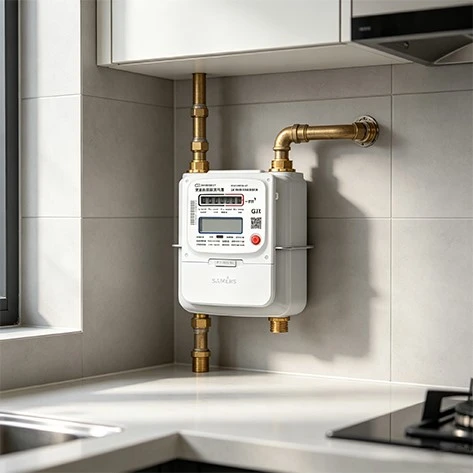

- Gas meters, electric meters, water meters
- Electric toothbrushes, remote controls
- Safes
- Water filter pitcher, heated cup, juice Cup
- Germicidal lamps, ultrasonic devices, toilet seats
- Heaters, small fans, Mosquito Killer
- Humidifier, aromatherapy diffuser
- Anti-tamper alarms for gas / water / electricity meters & safes
- Tip-over protection for medical devices
- Charging Stations, Electromechanical Equipment
- Logistics labels & asset tracking
- Telescopes, red-dot reflex sights, infrared thermal imaging sights, etc.
- Bike Computer, Taillight
- Smart toys, toy dice, electronic Rubik's Cubes, game controllers, etc.
- Alarm clocks, outdoor lights, etc.

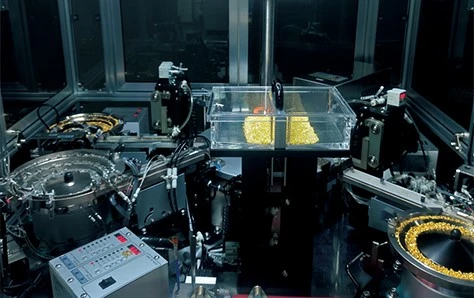

Automated, High-Throughput Production
-

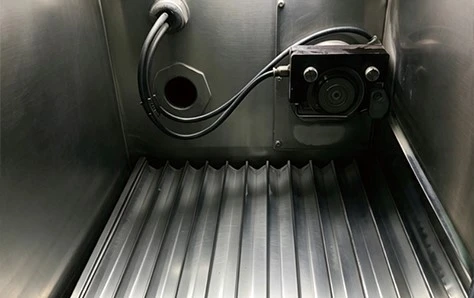

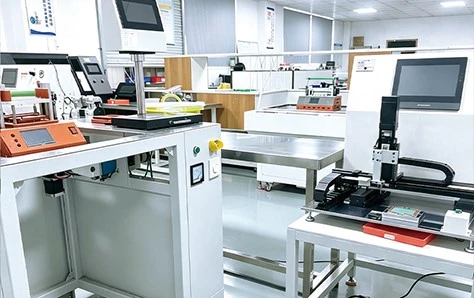

Ten fully automatic testing platforms capable of univ-ersal tilting, vibration, and rotation, with a dailytesting capacity of 2 million finished units.
-
Six-axis simultaneous precision drilling machine;daily output of 1 million high-precision micro-drilled parts.
-

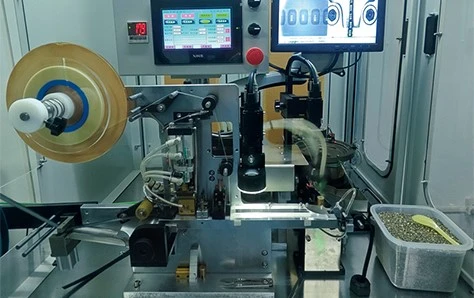

Six high-speed, fully automated integratedking and taping machines,with a daily packagingcapacity of 2 million units.
-

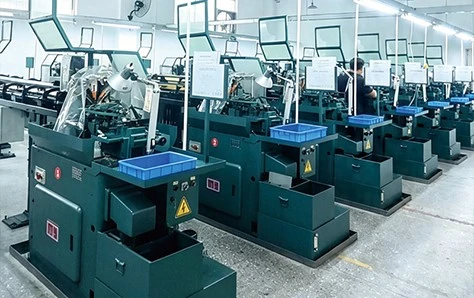

Equipped with thirty precision automatic lathes impor-ted from Taiwan, capable of processing onemillion ha-rdware parts daily.
-
Four assembly lines for vibration and tilt switches, witha daily production capacity of 3 million units.
-

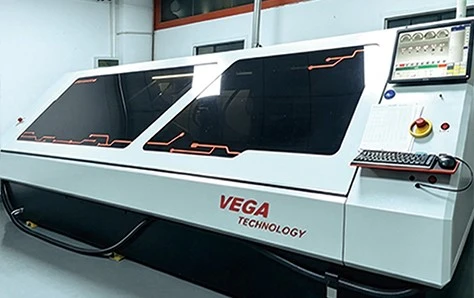

Six high-precision, high-power laser cutting machines produce 1.8 million finished pieces daily.
Six technical pillars that make CSX sensor switches a reliable, low-cost design choice.
A Smarter Alternative to G-Sensors and Gyroscopes
A straightforward, engineer-to-engineer process designed to get your sensor switch into production fast.
Analyze the application conditions, identify boundary conditions such as tilt angle, power supply, environmental factors, and installation space, determine the core technical parameters, and anticipate potential structural risks.
Select the appropriate tilt switch model based on operating conditions, compare key parameters such as trigger angle, service life, and packaging, provide a primary selection and an alternative option, and issue a selection reference table.
Samples are prepared upon request, accompanied by specifications and installation instructions, with a clearly defined delivery timeline; samples are intended for laboratory evaluation only and may not be used directly in mass production assembly.
Conduct reliability tests, including tilt-angle triggering, high- and low-temperature testing, and shock aging; collaboratively analyze anomalies, iterate on solutions, and verify that the components meet the system-level specifications.
Once the plan is finalized, trial production begins, with quality control implemented throughout the entire process to strictly ensure batch consistency; feedback from field installations is collected to optimize assembly processes and complete preparations for mass production.
Automated production lines are operating stably, and a comprehensive quality control system has been established to ensure a continuous supply; we conduct ongoing random inspections, provide technical support, and optimize costs.
- 01
- 02
- 03
- 04
- 05
- 06
Contact Information
Shenzhen Chengshengxing Technology Co., Ltd.
-
Email:
-
Tel:
-
Whatsapp:
-
Address:
6th Floor, Building B, East Zone, Xingdao Industrial Park, Shangxue Technology Park, Jihua Road, Bantian Street, Longgang District, Shenzhen
|
* Kindly note our requirements for standard product lines as a reference Minimum Order Quantity |
|
| Product Name | MOQ |
| Plastic Crates | 1000pcs |
| Plastic Pallet Boxes | 1000pcs |
| Rotational Molding Containers | 1000pcs |
Request a Quote & Free Sample
Reach out to our team for inquiries, quotations, or cooperation opportunities.
We promise to respond to your inquiry within 24 hours. Your information will be kept strictly confidential and used solely to respond to your request-we value your needs and privacy.
Frequently Asked Questions
Are CSX vibration sensors and tilt switches powered?
Can CSX tilt switches replace mercury switches?
What is the sample policy and minimum order quantity?
Can you customize trigger angle, size or waterproof rating?
Do CSX products meet international compliance standards?
