If you're developing wearable devices, asset trackers, or alarm triggers, power consumption is a top priority. When creating motion-activated devices, many makers' first instinct is to use MEMS accelerometers. However, these chips continue to draw current even in standby mode, and a few months of standby can completely drain the battery.
Is there a way to detect shaking, tapping, or vibration while consuming virtually no standby current? This purely mechanical, ultra-sensitive vibration switch makes it possible.
The device features a gold-plated ball structure inside. When vibration or displacement occurs, the ball bounces, directly outputting a continuous sequence of high and low levels to the microcontroller's I/O port. The sensitivity can be fully adjusted via MCU software without any hardware modifications.
Key Specifications:
►Standby Power Consumption: ≈0 μA
►Operating Voltage: 0.5–24 VDC
►Contact Resistance: <30 Ω, Insulation Resistance: >10 MΩ
►Operating Temperature: -40°C to +85°C

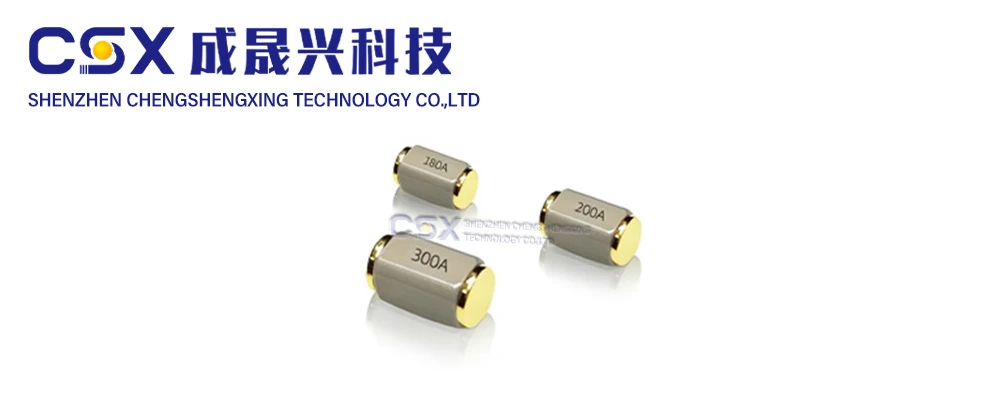

►SMT surface-mount package, 3 sizes: CSX-SEN-180A (2×2×3 mm), CSX-SEN-200A (2.5×2.5×4.8 mm), CSX-SEN-300A (3×3×5.2 mm)
Suitable for DIY projects:
•Bike computers-devices that automatically wake up when a ride begins
•Red-dot sights and gun sights triggered by power-on
