Advantages
1. All-round detection angle
CSX-SEN-360A-45U adopts a spherical omnidirectional trigger structure and has the ability to detect tilt in any direction of the 360° horizontal plane. This design allows the sensor to sense posture changes in any direction without limiting the installation angle or direction, thereby simplifying the product design and installation process.
2. High-sensitivity tilt trigger
The trigger angle of the sensor is set to ±45°, that is, when the device tilts from a vertical state to 45° in any direction, the internal metal ball will deviate from the center position and complete the contact or disconnection action. The trigger accuracy of the sensor is controlled within the error range of ±2°, which can effectively identify medium-amplitude tilt angle changes. It is suitable for use scenarios such as anti-tilt control, mobile equipment safety protection, and automatic leveling. It has high adaptability to systems with certain requirements for response speed and reliability.
3. Stable mechanical structure
CSX-SEN-360A-45U uses silver-plated copper alloy material as the contact part. This material has good conductivity and oxidation resistance, and can effectively reduce the contact resistance, with a typical value of less than 50mΩ. Under standard working conditions, the sensor can withstand more than 1 million mechanical action cycles, meeting the requirements of long-term operation and frequent tilt state switching, and is suitable for deployment in industrial control, outdoor equipment, transportation and other occasions that require reliability.
4. Low power design
As a passive device, CSX-SEN-360A-45U does not consume current when not triggered, and only conducts the circuit instantly when in action. This feature makes it particularly suitable for battery-driven portable devices or low-power embedded systems. In practical applications, the sensor can be used directly with a microcontroller to achieve effective tilt detection while reducing the overall system energy consumption.
|
Voltage |
0.5~2.4VDC |
|
Current |
2uA-10mA |
|
Closed resistance |
<30Ω |
|
Insulation resistance |
>10MΩ |
|
Temperature range Operating |
-40℃ to 80℃ |

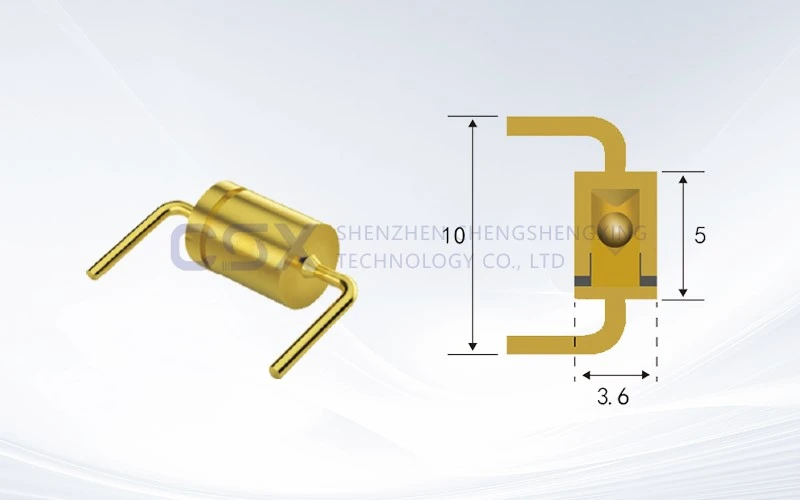

The Metal Ball Tilt Switch Tilt Angle Sensor CSX-SEN-360A-45U is a sensor that uses the movement of the internal metal ball when tilted to detect angle changes. It monitors and alarms the tilt state of the equipment by contacting or disconnecting the circuit at a specific tilt angle. The sensor has a simple structure and sensitive response, and is suitable for tilt detection and protection in the fields of mechanical equipment, building safety, vehicles, etc.
