Introduction
1. No power supply required

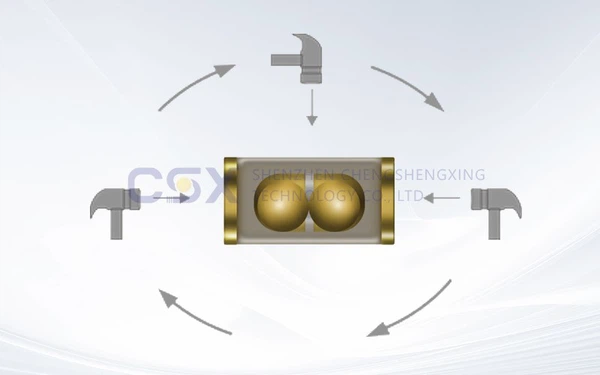

CSX-SEN-200A is a passive mechanical vibration switch. It senses vibration through a precision ball structure and outputs a switch signal when physical shaking or collision is detected. Since no external power drive is required, this component is suitable for applications with strict power consumption requirements, such as portable devices, low-power systems or IoT terminals.
2. Sensitive response
This product can quickly generate a conduction state after vibration occurs, and the typical trigger conduction time is less than 1ms, which is conducive to the system to respond in a short time. Its contact resistance is less than 30Ω, ensuring the stability and consistency of signal transmission when the switch is closed. When detecting slight vibration or movement, it can provide clear and effective electrical signals, which helps to improve the response speed and judgment accuracy of the entire system.
3. Small size SMD package
CSX-SEN-200A adopts a surface mount (SMD) structure, which is convenient for automatic mounting on SMT production lines. Its typical dimensions are 6.0mm in length and 2.0mm in height, which is suitable for installation on circuit boards with compact space. The small size design enables it to be embedded in products such as smart bracelets, remote controls, and portable electronic devices, while meeting the needs of high-density layout and lightweight structure, improving the overall design flexibility of the product.
4. Wide operating temperature range
This product is designed to be suitable for various ambient temperature conditions, with an operating temperature range of -40°C to +85°C, covering the use environment of most consumer electronics and industrial electronic devices. Whether in cold outdoor conditions or in high-temperature enclosed spaces, CSX-SEN-200A can maintain stable switching characteristics. This feature enables it to be widely used in automotive electronics, outdoor sensors, security equipment and other occasions with high environmental adaptability requirements.
|
Voltage |
0.5~2.4VDC |
|
Current |
2uA-10mA |
|
Closed resistance |
<30Ω |
|
Insulation resistance |
>10MΩ |
|
Temperature range Operating |
-40℃ to 80℃ |
FUNCTIONS
CSX-SEN-200A is a highly sensitive miniature vibration switch. The sensor adopts a mechanical structure design and uses metal balls to realize vibration sensing. It has the characteristics of passive, low power consumption, and fast response. Its SMD package is suitable for automated assembly and is widely used in smart wearable devices, electronic instruments, alarm systems, home appliances, and various scenarios that require vibration detection.
