Introduction

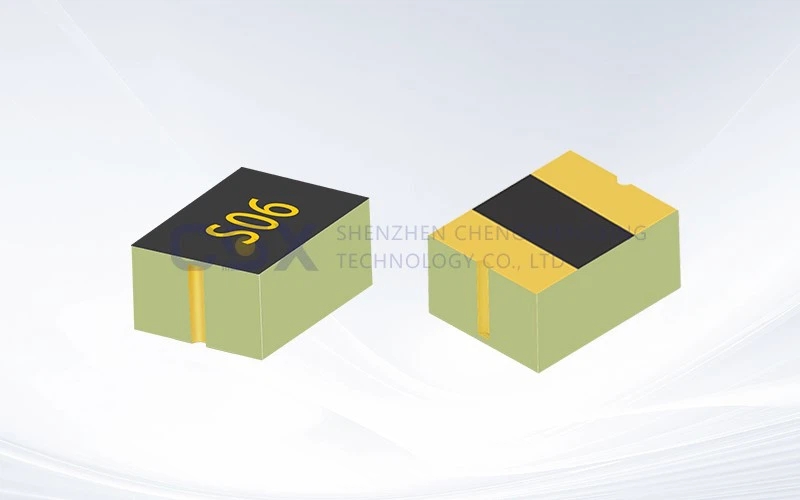

CSX-SEN-S06 is an industrial vibration switch, mainly used to monitor the vibration status of mechanical equipment to achieve equipment status monitoring and fault warning. It can detect the vibration level of the equipment in real time and help identify potential mechanical failures, such as bearing wear or imbalance.
|
Voltage |
0.5~2.4VDC |
|
Current |
2uA-10mA |
|
Closed resistance |
<30Ω |
|
Insulation resistance |
>10MΩ |
|
Temperature range Operating |
-40℃ to 80℃ |
1. High-sensitivity detection capability
The CSX-SEN-S06 is equipped with a high-precision piezoelectric accelerometer that can accurately respond when the vibration level reaches 0.1 g. This sensitivity enables it to identify early abnormalities in equipment and is suitable for monitoring common fault sources such as bearing wear, rotor imbalance, and looseness. These problems can be detected before they develop into serious damage, providing maintenance personnel with sufficient reaction time, helping to implement predictive maintenance strategies and thus reduce the risk of unplanned downtime.
2. Fast response speed
The vibration switch emphasizes fast response capability in its design, with an action delay of less than 50 milliseconds, and can quickly output signals when sudden vibration abnormalities occur in the equipment. This performance is particularly critical for high-speed rotating machinery such as motors, fans, compressors, etc., which can achieve real-time vibration detection and timely protection, reducing the probability of mechanical damage or safety accidents.
3. Multi-level adjustable alarm threshold
CSX-SEN-S06 supports users to adjust the alarm trigger threshold according to actual working conditions, ranging from 0.1 g to 2.5 g. Flexible threshold settings make this product suitable for both the sensitive response of high-precision equipment to micro-vibrations and the monitoring needs of heavy-duty equipment under high vibration tolerance. This adjustable feature helps improve adaptability and reduce the interference and maintenance costs caused by false alarms or missed alarms.
4. Accurate output control
In terms of output control, CSX-SEN-S06 uses a standard relay normally open/normally closed interface, and the error of the output signal is controlled within ±1%. This accuracy ensures that the switch signal has good stability and accuracy when connected to automation systems (such as PLC, DCS control systems), and can ensure that control instructions are transmitted to downstream equipment in a timely and accurate manner, which is conducive to efficient system linkage control.
