As a supplier of inclination switches, I understand the importance of ensuring these devices work correctly. Inclination switches are crucial in various applications, from industrial machinery to consumer electronics, where they are used to detect changes in orientation or tilt. In this blog, I'll share some practical methods to test if an inclination switch is working as expected.
Understanding Inclination Switches

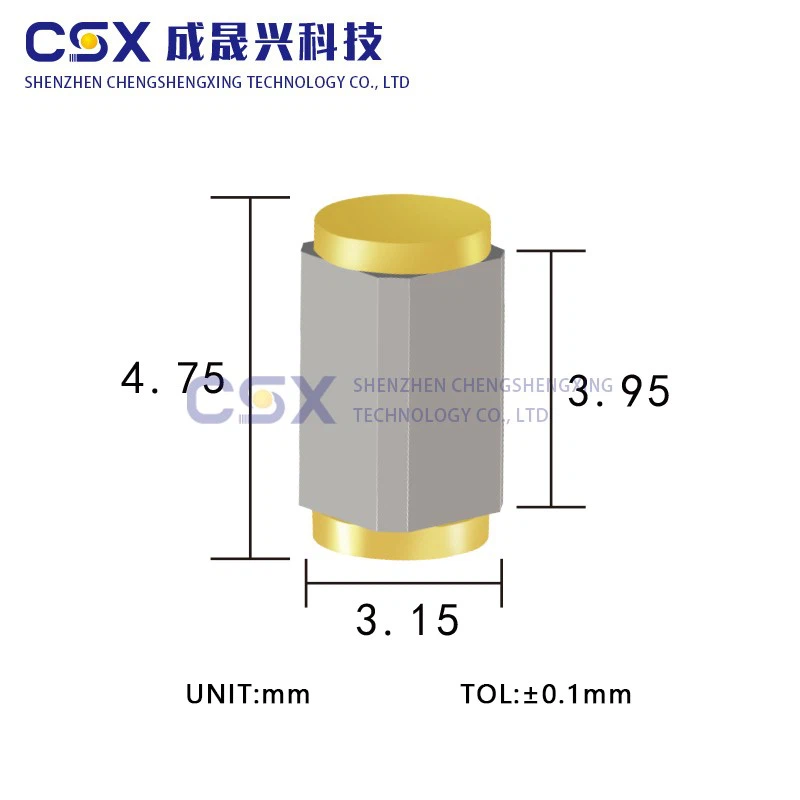

Before diving into the testing process, it's essential to understand how inclination switches work. In general, an inclination switch is a device that changes its electrical state based on its orientation relative to the force of gravity. There are different types of inclination switches, such as Roll Ball Sensor Switch BTS45, Omnidirectional Tilt Angle Detection Switch CSX - SEN - 660B, and Metal Ball Tilt Switch Tilt Angle Sensor CSX - SEN - 360A - 45U. Each type has its unique mechanism and operating principle, but the basic concept remains the same: they detect tilt and convert it into an electrical signal.
Visual Inspection
The first step in testing an inclination switch is a visual inspection. This simple yet effective method can reveal obvious signs of damage or malfunction. Start by examining the physical condition of the switch. Look for any cracks, breaks, or signs of corrosion on the housing. These issues can compromise the internal components and prevent the switch from working correctly.
Next, check the leads or terminals of the switch. Ensure they are securely attached and free from any loose connections, bent pins, or oxidation. A poor electrical connection can lead to intermittent or no functionality. If you notice any visible damage during the visual inspection, it's likely that the switch is faulty and may need to be replaced.
Basic Continuity Test
A continuity test is a fundamental way to check if an inclination switch is working. You'll need a multimeter for this test. Set the multimeter to the continuity or resistance mode.
- Isolate the Switch: Make sure the power to the circuit containing the inclination switch is turned off. Disconnect the switch from the circuit to avoid interference from other components.
- Connect the Multimeter Probes: Touch one probe of the multimeter to one terminal of the inclination switch and the other probe to the other terminal.
- Test in Different Orientations: Hold the switch in a horizontal position (assuming it's designed to be normally open or closed in this position). Check the multimeter reading. If the switch is normally open, you should see an infinite resistance (or an open - circuit indication). If it's normally closed, the multimeter should show a very low resistance (close to zero ohms).
- Tilt the Switch: Slowly tilt the switch to the angle at which it's supposed to change its state. For example, if it's a tilt - activated switch, as you tilt it, the resistance reading on the multimeter should change accordingly. If the switch is designed to close when tilted, the resistance should drop to a low value. If it's designed to open, the resistance should increase to infinity.
If the resistance doesn't change as expected when you tilt the switch, it indicates a problem with the switch. It could be due to a mechanical failure inside the switch, such as a stuck ball or a broken contact.
Functional Testing in a Circuit
To get a more realistic assessment of the inclination switch's performance, you can test it in a simple circuit.
- Build a Test Circuit: You can create a basic circuit using a power source (such as a battery), a resistor, an LED, and the inclination switch. Connect the components in series. The resistor is used to limit the current flowing through the LED and protect it.
- Power On the Circuit: When the switch is in its normal position, observe the LED. If the switch is normally open, the LED should be off. If it's normally closed, the LED should be on.
- Tilt the Switch: Slowly tilt the switch to the operating angle. The LED should change its state accordingly. If the switch is designed to close when tilted, the LED should turn on. If it's designed to open, the LED should turn off.
This test simulates the actual operating conditions of the switch and can help you determine if it's functioning correctly in a real - world scenario.
Testing for Sensitivity
The sensitivity of an inclination switch refers to the angle at which it changes its state. To test the sensitivity, you'll need a protractor or an angle - measuring device.
- Set Up the Test: Place the inclination switch on a flat surface. Secure it in place so that it doesn't move during the test. Connect the switch to a multimeter or a simple test circuit as described above.
- Measure the Tilt Angle: Slowly tilt the surface on which the switch is placed. Use the protractor to measure the angle of tilt. Note the angle at which the switch changes its state (i.e., when the multimeter reading changes or the LED turns on/off).
- Compare with Specifications: Check the manufacturer's specifications for the switch to see if the measured angle of operation is within the acceptable range. If the measured angle is significantly different from the specified value, the switch may have a sensitivity issue.
Testing for Repeatability
Repeatability is an important characteristic of an inclination switch. It refers to the ability of the switch to consistently change its state at the same angle each time it's tilted.
- Perform Multiple Tests: Tilt the switch to the operating angle multiple times. Each time, record the angle at which the switch changes its state.
- Analyze the Results: Calculate the variation in the operating angles. A high degree of variation indicates poor repeatability, which can be a sign of a faulty switch.
Temperature and Environmental Testing
In some applications, inclination switches may be exposed to different temperatures and environmental conditions. These factors can affect the performance of the switch.
- Temperature Testing: Place the inclination switch in a temperature - controlled environment, such as an oven or a freezer. Set the temperature to the extreme values specified by the manufacturer. Wait for the switch to reach thermal equilibrium. Then, perform the continuity or functional tests as described above. Check if the switch still operates correctly at different temperatures.
- Humidity and Vibration Testing: Similar to temperature testing, expose the switch to different humidity levels and vibration conditions. Check if the switch's performance is affected. High humidity can cause corrosion, while excessive vibration can loosen internal components.
Conclusion
Testing an inclination switch is a multi - step process that involves visual inspection, electrical testing, and functional testing in different conditions. By following these methods, you can accurately determine if an inclination switch is working correctly.
If you're in need of high - quality inclination switches for your projects, we are here to provide you with reliable products. Our switches are rigorously tested to ensure optimal performance and durability. Whether you're working on an industrial automation system, a consumer device, or any other application, we can offer the right inclination switch for your needs. If you're interested in purchasing our inclination switches or have any questions, feel free to contact us for a detailed discussion and procurement negotiation.
